Guide Discs for Standard & Heavy-Duty Conveyor Rollers
Guide Discs for Standard & Heavy-Duty Conveyor Rollers

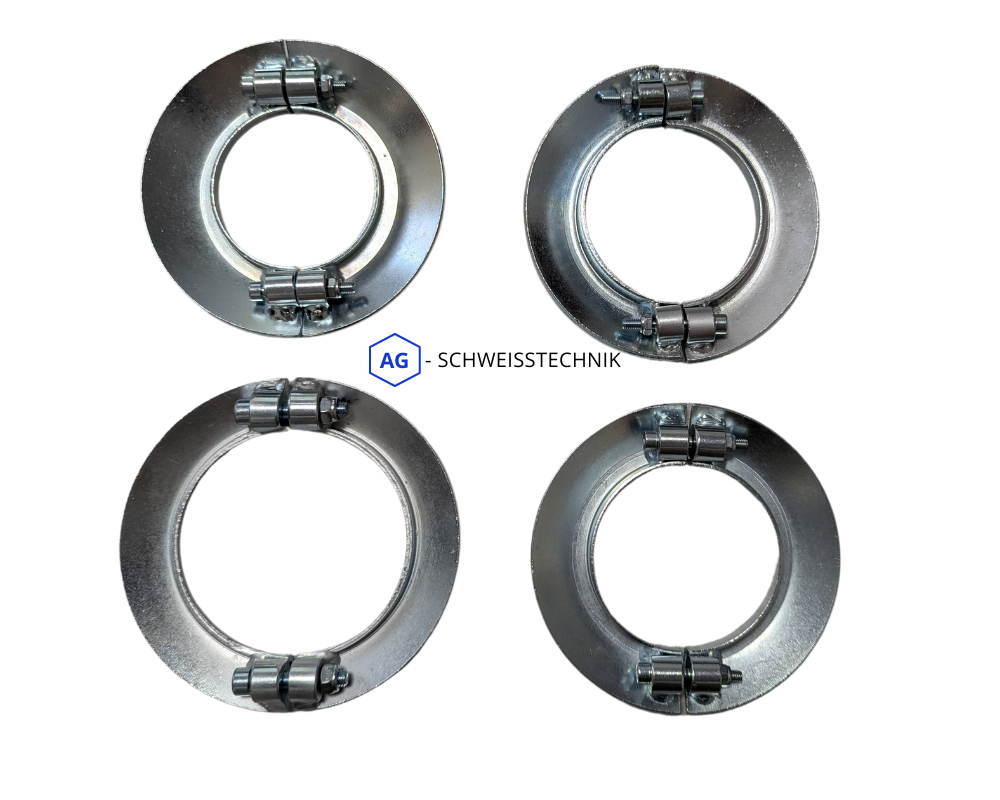

Our edge rim discs and guide discs reliably guide pallets and goods on conveyor roller tracks. Made of galvanized steel, they guarantee precise tracking and prevent lateral slippage of transported items in heavy-duty and intralogistics applications.
Delivery Times & Order Quantities:
- 500 to 1,000 units: immediately available from stock
- 1,000 to 5,000 units: short-term delivery or upon request
- Large series & framework contracts: flexible production upon request

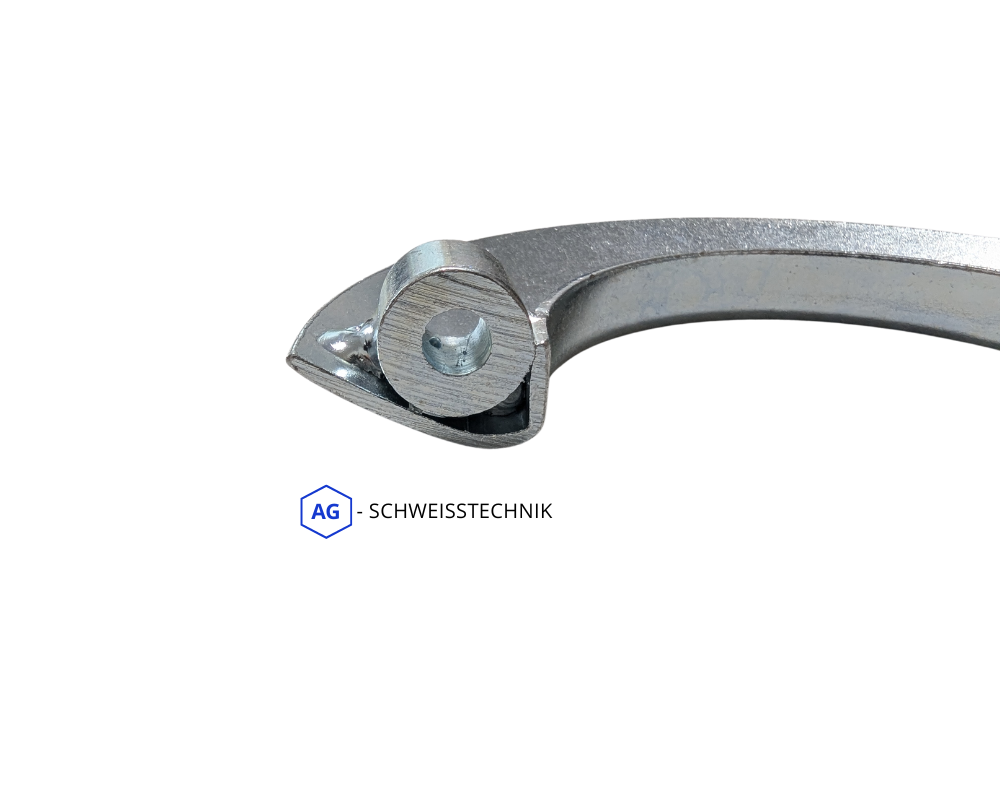

- Versions: Available as blanks, single-split or double-split with 3 mm saw cut
Edge Rim Discs / Guide Discs
for 60 mm Carrier Rollers
Dimensions: 60 × 120 × 2.5 mm
Unit price (net): –
For Carrier Rollers
Guide discs for carrier rollers, available as single-piece or split versions.

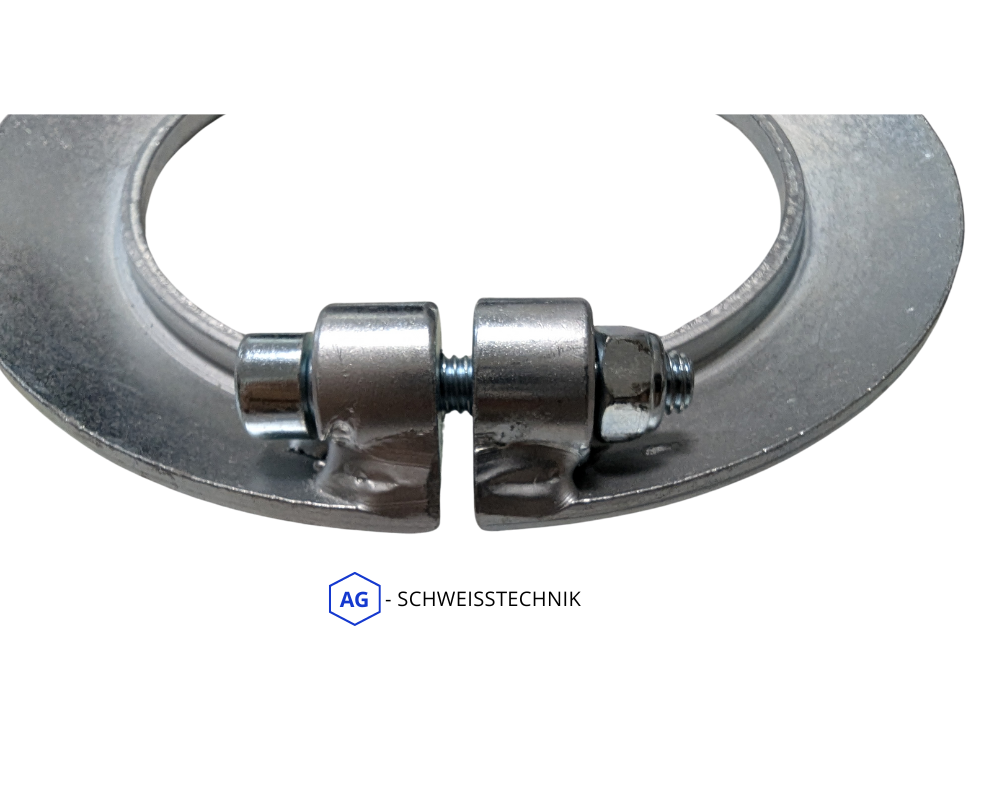

Equipped with a 6 × 45 Allen screw
and a self-locking nut.
Dimensions: 60 × 120 × 2.5 mm.
Tightening torque: 10 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for 60 mm Carrier Rollers
Dimensions: 60 × 110 × 2.5 mm
Unit price (net):
–
For Carrier Rollers
Guide discs for carrier rollers, available as single-piece or split versions.
Equipped with a 6 × 45 Allen screw
and a self-locking nut.
Dimensions: 60 × 110 × 2.5 mm.
Tightening torque: 10 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for 63 mm Carrier Rollers
Dimensions: 60 × 130 × 2.5 mm
Unit price (net):
–
For Carrier Rollers
Guide discs for carrier rollers, available as single-piece or split versions.
Equipped with a 6 × 45 Allen screw
and a self-locking nut.
Dimensions: 63 × 130 × 2.5 mm.
Tightening torque: 10 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for 80 mm Carrier Rollers
Dimensions: 80 × 151 × 2.5 mm
Unit price (net):
–
For Carrier Rollers
Guide discs for carrier rollers, available as single-piece or split versions.
Equipped with a 6 × 45 Allen screw
and a self-locking nut.
Dimensions: 80 × 151 × 2.5 mm.
Tightening torque: 10 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for conveyor rollers 89Ø
Dimensions: 89 x 140 x 2,5 mm
Unit price (net): –
for Conveyor Rollers
Führungsscheiben for Conveyor Rollers, einseitig oder beidseitig geteilt
with M6 x 45 socket head screw
and self-locking nut
Dimensions: 89 x 140 x 2,5 mm
Tightening torque: 10 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for conveyor rollers 89Ø
Dimensions: 89 x 140 x 2,5 mm
Unit price (net): –
for Conveyor Rollers
Führungsscheiben for Conveyor Rollers, einseitig oder beidseitig geteilt
with M6 x 45 socket head screw
and self-locking nut
Dimensions: 89 x 140 x 2,5 mm
Tightening torque: 10 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for conveyor rollers 89Ø
Dimensions: 89 x 151 x 2,5 mm
Unit price (net): –
for Conveyor Rollers
Führungsscheiben for Conveyor Rollers, einseitig oder beidseitig geteilt
with M6 x 45 socket head screw
and self-locking nut
Dimensions: 89 x 151 x 2,5 mm
Tightening torque: 10 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for heavy-duty rollers 89Ø
Dimensions: 89 x 152 x 4 mm
Unit price (net): –
for Heavy-Duty Rollers
Führungsscheiben for Heavy-Duty Rollersn, einseitig oder beidseitig geteilt
with M8 x 45 socket head screw
and self-locking nut
Dimensions: 89 x 152 x 4 mm
Tightening torque: 24 Nm
Saw cut: 3 mm
Edge Rim Discs / Guide Discs
for heavy-duty rollers 108Ø
Dimensions: 108 x 161 x 4 mm
Unit price (net): –
for Heavy-Duty Rollers
Führungsscheiben for Heavy-Duty Rollersn, einseitig oder beidseitig geteilt
with M8 x 45 socket head screw
and self-locking nut
Dimensions: 108 x 161 x 4 mm
Tightening torque: 24 Nm
Saw cut: 3 mm
Properties & Features
Robust Construction
High-grade steel, electro-galvanized – permanently corrosion-resistant and wear-resistant for harsh industrial environments.
Precise Guidance
Exact dimensional accuracy for smooth tracking on all standard roller diameters (60 to 108 mm).
Versatile Application
Suitable for driven and gravity roller conveyors in pallet, container, and mesh box transport systems.
Easy Clamp Assembly
Quick installation via socket screw (DIN 912) and lock nut – easily retrofitted without dismantling conveyor tracks.
Key Advantages
Proven benefits for your material flow and long-term reliability of your conveyor systems:
Efficient Material Flow
Prevents skewing and jamming of pallets and containers reliably during continuous operation.
High Operational Safety
Reliable load guidance minimizes the risk of falling goods and unscheduled production downtime.
Reliable Product Protection
Effectively shields conveyed goods and load carriers against lateral friction and collision damage.
